API 609 Butterfly Valve For Water Distribution Networks

The Critical Role of API 609 Butterfly Valves in Modern Water Networks

Municipal and industrial water distribution networks serve as the lifelines of urban development. Operating these networks demands absolute reliability, minimal pressure drops, and exceptional longevity from all pipeline components. Among the various isolation and control elements, the API 609 butterfly valve has established itself as an indispensable industry standard. Governed by the American Petroleum Institute, the API 609 standard specifies dimensions, ratings, and testing criteria that ensure these valves perform under rigorous municipal supply and high-pressure water distribution conditions.

As water resources become increasingly scarce and infrastructure continues to age, water utilities worldwide are shifting their focus toward reducing Non-Revenue Water (NRW). NRW refers to water that has been treated and is lost through leaks before it reaches the customer. High-performance API 609 butterfly valves, particularly concentric and eccentric designs, play a pivotal role in minimizing network leakages. By providing a bubble-tight bi-directional seal, these valves allow for efficient zone isolation, preventing massive water loss during maintenance shutdowns and localized pipe bursts.

Commercial and Industrial Landscape: Desalination and Smart Water Trends

The global demand for clean drinking water has driven rapid expansion in the seawater desalination sector. Desalination plants operate under severe corrosive conditions due to high chloride concentrations and high-pressure reverse osmosis processes. Standard ductile iron valves quickly fail in these environments. Consequently, the industry has evolved to demand specialized API 609 butterfly valves utilizing nickel-aluminum bronze, super duplex stainless steel, and high-build fusion-bonded epoxy (FBE) coatings.

Furthermore, the integration of Smart Water Networks has transformed how municipalities manage flow. By pairing API 609 butterfly valves with intelligent electric actuators and IoT-enabled sensors, operators can monitor valve positions, flow rates, and pressure fluctuations in real-time. This smart infrastructure allows for predictive maintenance, remote shutoff during emergencies, and automated pressure management to prevent pipe fatigue and water hammer.

Deep Scenario Analysis: Where API 609 Butterfly Valves Excel

1. Municipal Water Treatment & Filtration Plants

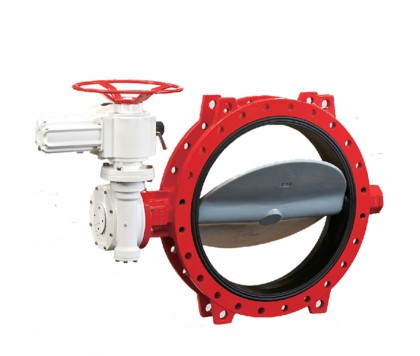

Inside water treatment facilities, fluid flow must be tightly controlled at every stage—from raw water intake to rapid sand filtration and chemical dosing. Concentric resilient-seated butterfly valves (API 609 Category A) are highly suited for filter gallery piping. The vulcanized rubber sleeve prevents the process water from contacting the valve's metal body, eliminating internal corrosion. These valves provide a tight shutoff under low pressure differentials, guaranteeing that chemical backwashes do not cross-contaminate clean water lines.

2. High-Pressure Municipal Transmission Mains

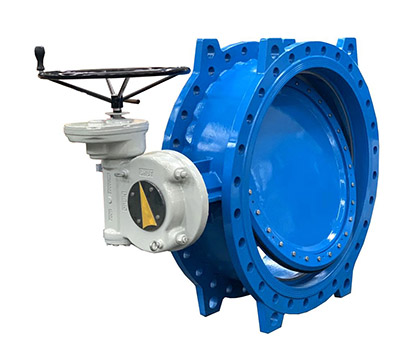

For long-distance water transmission lines where water is pumped across varying elevations, pressure management is critical. Here, double eccentric flanged butterfly valves (API 609 Category B) are the preferred choice. The offset disc reduces seat wear during frequent modulation, extending the valve's lifecycle. When paired with heavy-duty worm gears or electric actuators, these valves close slowly to mitigate the destructive effects of water hammer, which could otherwise rupture municipal pipelines and disrupt water supply to thousands of residents.

3. Seawater Desalination & Brine Disposal

Desalination plants present one of the most punishing environments for industrial valves. The high salinity of seawater, combined with acid cleaning stages, leads to rapid crevice corrosion and pitting. TWS Valve has developed custom-coated centerline butterfly valves featuring super duplex steel discs and specialized elastomer seats. These materials offer exceptional resistance to chloride attack, ensuring that intake lines and high-pressure brine reject systems operate continuously without unplanned shut-downs.

4. District Cooling & HVAC Water Balancing

In large-scale commercial and industrial HVAC systems, maintaining hydraulic balance across hot and chilled water loops is vital for energy efficiency. API 609 butterfly valves, working alongside static balancing valves, regulate the flow of cooling water to air handling units and chillers. Their compact face-to-face design allows them to fit into tight utility shafts, while their low torque allows for precise modulation, ensuring consistent indoor climates and reduced pumping costs.

Cooperation Cases & Projects

Proven Flow Control Performance Across Diverse Global Infrastructure

TWS Valves are widely deployed in municipal water treatment, water distribution, wastewater management, dams, hydropower plants, thermal power stations, and general industrial pipelines. Thanks to our high quality, competitive pricing, and professional service, our products are integrated into major national infrastructure projects and exported to Europe, North America, South America, Southeast Asia, and Africa.

We have established long-term and reliable partnerships with many world-famous valve brands, acting as their trusted OEM/ODM manufacturer. TWS Valve constantly strives to cast masterpieces of flow control, defining new standards in valves for water.
