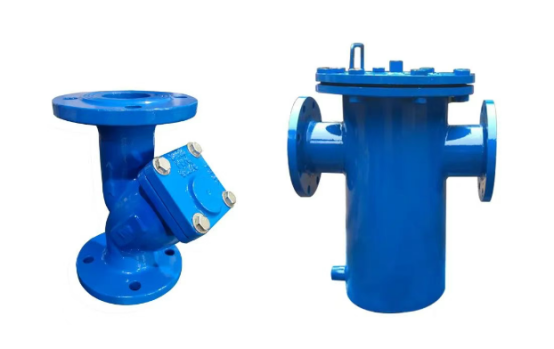

In industrial piping systems, filters act like loyal guardians, protecting core equipment such as valves, pump bodies, and instruments from impurities. Y-type filters and basket filters, as the two most common types of filtration equipment, often make it difficult for engineers to choose when selecting a model. Waters Valves is well aware of your confusion. Today, we will take you through an in-depth analysis of the key differences between these "two giants" to help you make an accurate selection!
➸The battle between structure and space➸
eathlessness" leads to death: high pressure and corrosion
➸Filter performance and maintenance convenience➸

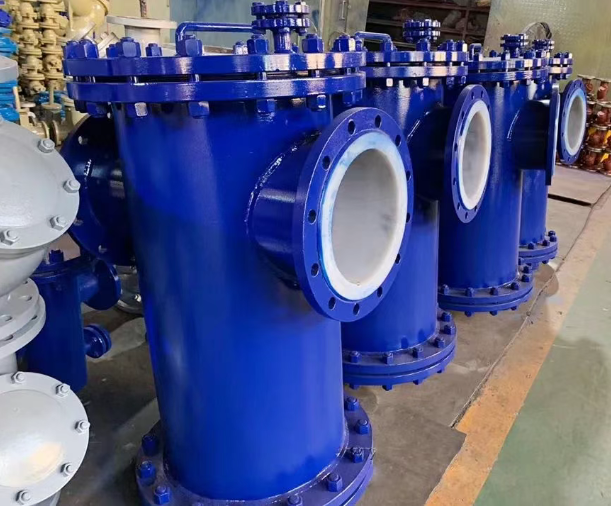

"Filtering Capacity" Y-type Filter: The filter screen has a relatively small effective filtration area and a low initial pressure drop, making it suitable for conditions with medium to low impurity content. Its conical design helps impurities slide to the bottom collection area. Basket Filter: The basket filter offers a large effective filtration area, significantly reducing flow velocity and pressure drop, and has a high contaminant holding capacity, making it ideal for handling fluids with high impurity content, large particles, or viscosity.
"Cleaning and Maintenance" Y-type Filter: Most designs allow for online cleaning (by closing the valve) or quick removal of the filter screen for cleaning through a removable cover or plug (for smaller models). This maintenance is relatively convenient and minimally affects system continuity. Basket Filter: Cleaning and maintenance require opening the top cover (usually involving flange disassembly) and removing the entire filter basket for cleaning. Although the operation is straightforward, it is time-consuming and requires the system to be shut down. The Waters basket filter features a patented quick-opening design, significantly enhancing maintenance efficiency.
➸Suitable Scenarios Differ Significantly➸
The preferred scenario of Y-type filter: In the case of space tension (such as in front of instrument valve group, compact space at pump inlet), low pressure steam, gas, light oil and other media with less impurities need to have small pressure drop or online maintenance occasions small diameter pipeline (DN15-DN400)
➸ Waters Selection Tips: Beyond Basic Parameters ➸
Flow and Pressure Drop: Choose a basket filter for high flow rates or low pressure drops when the system allows for higher pressure drop. Impurity Characteristics: Select a basket filter for high load conditions if you estimate the types, sizes, and quantities of impurities. Space and Installation: Choose a Y-type filter if the installation space is limited after on-site measurements. Maintenance Requirements: Opt for a Y-type stainer with filter with online maintenance capabilities if you need high continuity and can tolerate downtime. Medium and Operating Conditions: Consider temperature, pressure, and corrosiveness to select the appropriate material (Waters offers a full range of options, including cast steel, stainless steel, and alloys).
